PVC Li-ion battery pack
Product Description

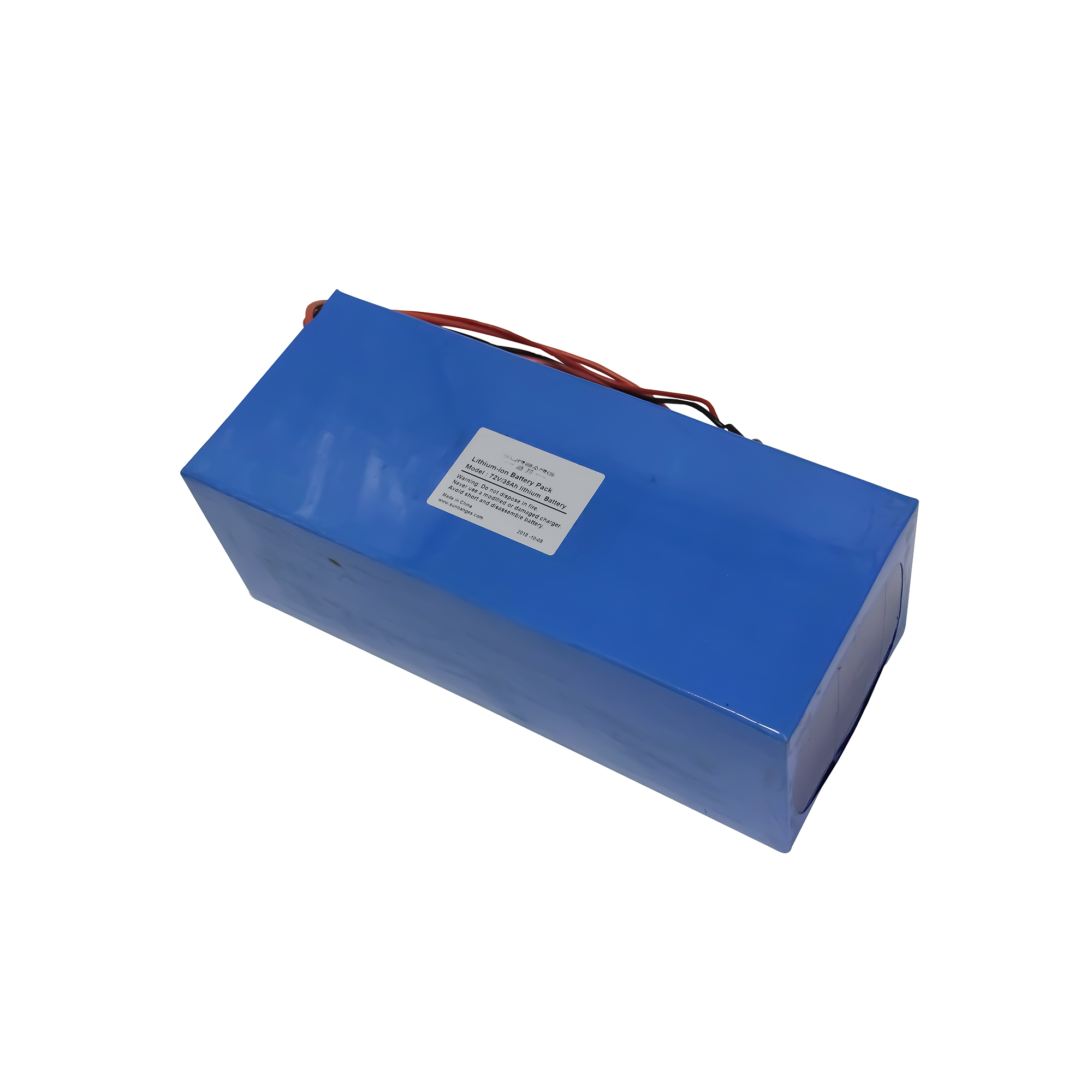

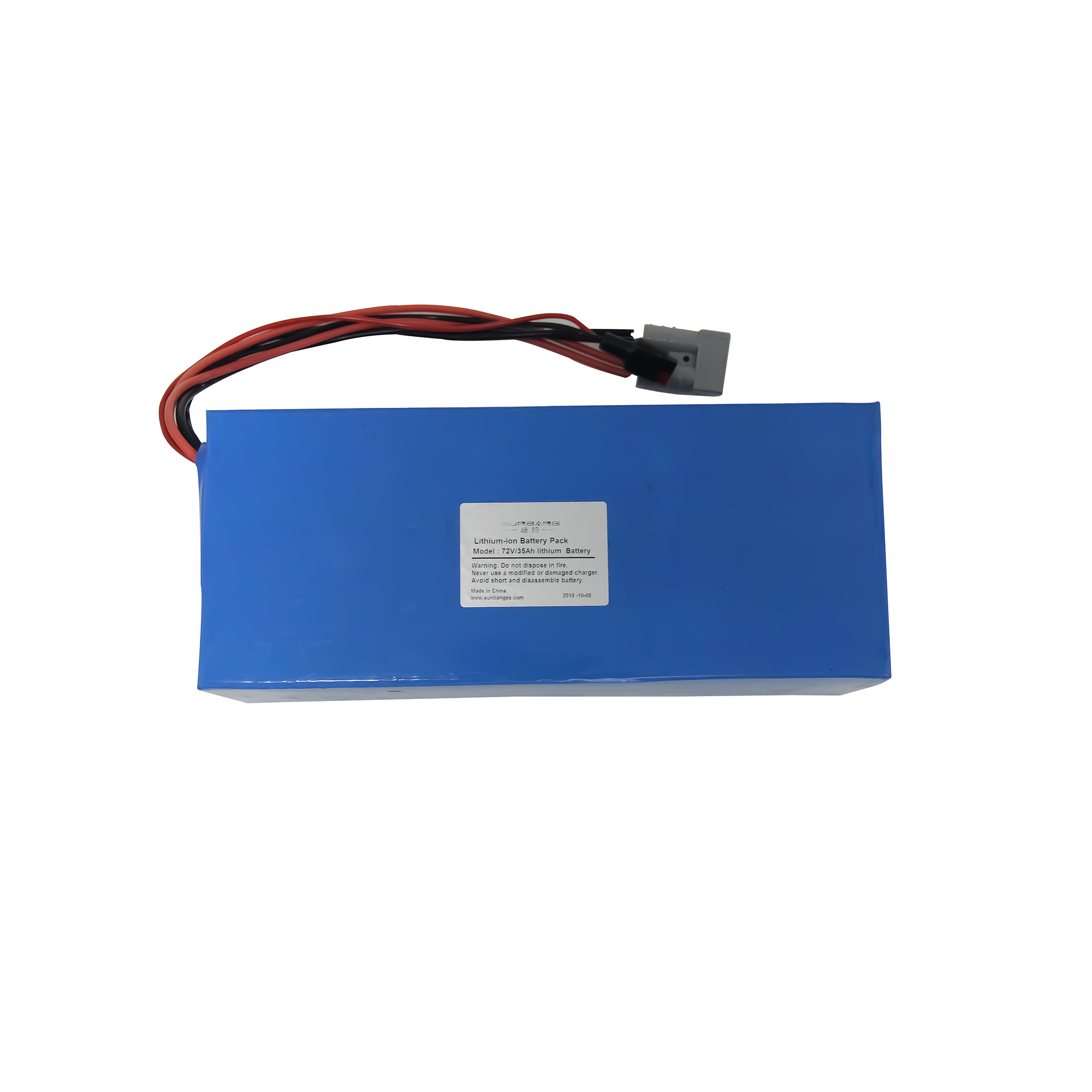

PVC packaging battery pack
, choosing the right lithium-ion battery chemistry is essential to achieving the goals of a given application or even different businesses. Unlike typical battery manufacturers, we can choose from several different chemicals to meet your specific goals.
maybe you are just a start-up company, want a small minimum order quantity, want to quickly test your product to enter the market, or need the highest energy density, or even a special size like a circle to make the battery small and light weight. Or, maybe you just put the battery there alone, so weight or even size is not that important, so you want to maximize the battery capacity for as long as possible.
We can manufacture all types of customized batteries according to your requirements.
standard product parameters (customized) | |
Product Name | 48v 100Ah/200Ah/300Ah lithium iron phosphate battery |
Nominal voltage | 51.2V |
Rated capacity | 100Ah/200Ah/300Ah (ampere hour) |
Energy | 5120 Wh/10240 Wh/15360 Wh |
charging voltage | 58.4V |
discharge cut-off voltage | 40V |
Shell | Metal-IP65 dustproof and waterproof rating |
CC/CV | |
Standard charging current | 20A/40A/60A/Custom |
Max. Charging current | 100A/200A/300A/Custom |
Standard discharge current | 100A/200A/300A/Custom |
Maximum continuous discharge current | 100A/200A/300A/Custom |
peak current | 300A/600A/900A |
life cycle | 6000 times |
Weight | 42kg/80kg/115kg |
Operating temperature range | Charging: 0 ° C- 45 ° C (32 F-115 °F)(Customized) |
self-discharge | 3% |
storage temperature | -10 ° C- 45 °C(15 ° F-115 °F) |
Security Certificate | 3.2V 100Ah prismatic battery UL1973 certificate |
Optional Features | 1LCD display, Bluetooth module, heating, cooling and waterproof (IP68/69),USB, |
Application | Home solar system, UPS, wind energy, RV, RV, boat... |
Dimensions | 330*173*216mm |
Product Characteristics
lithium battery pack
1. Use high-quality brand (Samsung/Panasonic) and China Class A batteries
2. The protection system uses original chips from Japan and the United States.
3. Support OEM and ODM services.
4. Voltage/capacity/size can be customized
Customized production on demand
ODM
OEM
Application Scenarios
Application Equipment
led lights, traffic signs, portable small appliances, power tools, toys, robots, etc
Emergency lights, diving flashlights, solar lawn lights, LED lights, lawn mowers.
Flashlight, Outdoor Light, Searchlight, Tactical Light, Solar Street Light
Medical Equipment, Rehabilitation Equipment, Diagnostic Equipment, Medical Testing Equipment, Medical Monitors
Testing Instruments, Exploration Instruments, Testing Instruments, Air/Water Testers,
Mobile Communication Equipment, Scanner, Mapper
Power tools, wireless machines, portable instruments, pos machines, alarm monitors, etc.
Ship Safety PackagingShipping and Air Transport
provide safe and reliable transport packaging.
Project Case
Highest lithium-ion power densityrechargeable batterychemistry. It isLightweightand OffersLarge cycle lifeeven exceeds 500, which makes it an ideal product for many new design solutions.
SUNBhaveCustom Designlithium-ion battery packs to meet the specific needs of your product. From small single-cell battery packs to large battery packs, SUNB can design safe and reliable solutions to meet your specifications.
SUNBUsethe highest quality cellsmake a lithium-ion battery pack.SUNBwill do our best to ensure that all batteries meet the highest safety standards. For more information, see our test report. Factory passed the ISO 9001 certification and batteryUL,United Nations 38.3andIEC62133,MSDS.
